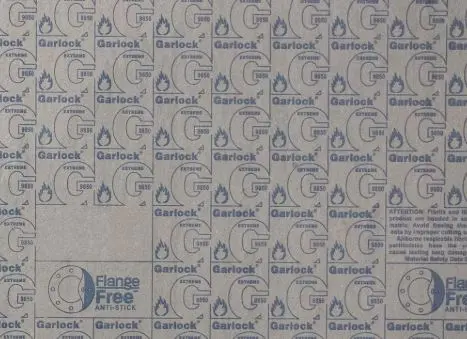

Garlock Style 9850 can be supplied as Full Sheet, Custom Size Cut Sheet, flange gaskets, Ring gaskets, Custom Gaskets, strips, Blocks, washers.
Garlock Style 9850 gasket is composed of carbon fibers with a nitrile binder. This high temperature gasket has a long-lasting seal, which minimizes cold flow and creep relaxation problems.
Features and Benefits:
- Excels in the harshest conditions – intense heat, high pressure, saturated steam* and hot oils
- Laboratory-tested for fire safety.
- Long-lasting seal
MATERIAL PROPERTIES:
| Color: | Black |
| Composition: | Carbon fibers with a nitrile binder |
| Fluid Services (see chemical resistance guide): | Saturated steam2 , water, oils, gasoline, aliphatic hydrocarbons and most refrigerants |
| Temperature, °F (°C) | |
| Minimum: | -100 (-75) |
| Continuous Max: | +650 (+343) |
| Maximum: | +900 (+482) |
| Pressure, Maximum, psig (bar): | 2000 (138) |
| P x T (max.), psig x °F (bar x °C): | |
| 1/32 and 1/16”: | 700,000 (25,000) |
| 1/8” | 350,000 (12,000) |
| Meets Specifications: | Fire Safe |
