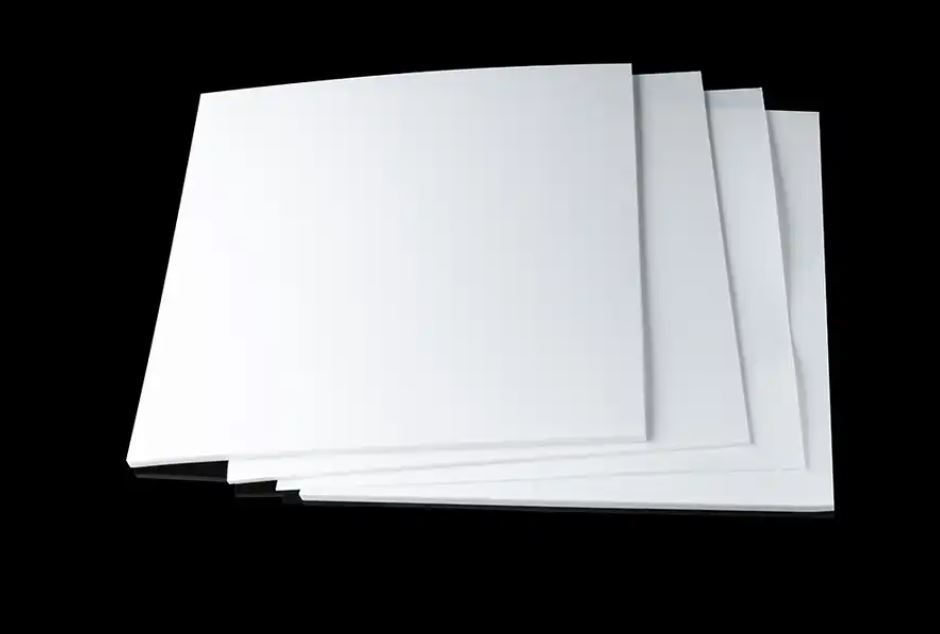

Virgin PTFE Gasket Sheet/ Teflon Gasket Sheet

Our Virgin PTFE (Teflon) Sheet is a food-grade high-performance material known for its outstanding chemical resistance, low friction properties, and versatility in industrial and food-related applications. Made from 100% pure PTFE resin, this Teflon sheet is ideal for environments requiring hygienic, non-contaminating, and chemically inert materials.

This sheet is available in thicknesses from 0.25mm to 30mm and sheet sizes up to 1500mm x 1500mm, providing flexibility for a wide range of uses, including gaskets, seals, bearings, insulation components, and food-contact surfaces.

Here are some key details about virgin PTFE gasket material:

• Chemical Resistance: Virgin PTFE is highly resistant to a wide range of chemicals, including acids, bases, solvents, and hydrocarbons. This resistance makes it suitable for use in chemical processing, petrochemical, and pharmaceutical industries.
• Temperature Resistance: PTFE can withstand temperatures ranging from -180°C to 260°C  continuously. This makes it suitable for applications where extreme temperatures are encountered, such as in cryogenic applications or high-temperature processes.
• Low Friction: PTFE has one of the lowest coefficients of friction among solid materials, which means it provides excellent non-stick properties. This low friction makes it useful for applications involving sliding or rotational movements, such as seals and bearings.
• Electrical Insulation: PTFE is an excellent electrical insulator, even at high temperatures. This property makes it suitable for use in electrical applications where insulation is required, such as in cable insulation and electronic components.
• Compliance: Virgin PTFE gasket material typically complies with various industry standards and certifications, such as FDA (Food and Drug Administration) approval for food-contact applications and ASTM (American Society for Testing and Materials) standards for specific mechanical properties.
• Sealing Performance: Virgin PTFE gaskets provide a reliable seal, even in demanding conditions such as high pressures and temperatures. They are used in flange connections, piping systems, and other applications where leak prevention is critical.

Our Virgin PTFE (Teflon) Sheet is a food-grade high-performance material known for its outstanding chemical resistance, low friction properties, and versatility in industrial and food-related applications. Made from 100% pure PTFE resin, this Teflon sheet is ideal for environments requiring hygienic, non-contaminating, and chemically inert materials.

This sheet is available in thicknesses from 0.25mm to 30mm and sheet sizes up to 1500mm x 1500mm, providing flexibility for a wide range of uses, including gaskets, seals, bearings, insulation components, and food-contact surfaces.

(For bulk orders or wholesale inquiries, please email us at sales@industrialexperts.com.au and our team will respond promptly)

Key Features & Benefits:

• Food-Grade Material: Safe for direct contact with food and beverages.
• Exceptional Chemical Resistance: Resistant to acids, bases, and solvents.
• High Thermal Stability: Performs effectively between -200°C and +260°C.
• Low Friction & Non-Stick Surface: Reduces wear, tear, and material adhesion.
• Electrical Insulation: Excellent dielectric properties.
• Multiple Sheet Sizes: 500mm x 500mm, 1000mm x 1000mm, 1500mm x 1500mm.
• Multiple Thickness Options: 0.25mm, 0.5mm, 0.8mm, 1mm, 1.5mm, 2mm, 3mm.

Technical Information:

• Material Composition: 100% Virgin PTFE (Teflon)
• Temperature Range: -200°C to +260°C
• Density: Approx. 2.2 g/cm³
• Tensile Strength: ≥15 MPa
• Elongation at Break: ≥150%
• Dielectric Strength: ≥10 kV/mm
• Sheet Sizes Available: 500mm x 500mm, 1000mm x 1000mm, 1500mm x 1500mm
• Thicknesses Available: 0.25mm, 0.5mm, 0.8mm, 1mm, 1.5mm, 2mm, 3mm

Common Applications:

• Food-grade seals and gaskets in food processing, dairy, and beverage equipment.
• Bearings and bushings requiring low friction and chemical resistance.
• Electrical insulation components.
• Lining for tanks, pipes, and vessels to prevent contamination or corrosion.
• Non-stick surfaces in food manufacturing equipment.

To place an order or if you require any further more information, please simply click here to Call Us or Email US.
