GYLON® Style 3502 Gasket Sheet - OXY Service

GYLON® Style 3502 Gasket Sheet – OXY Service

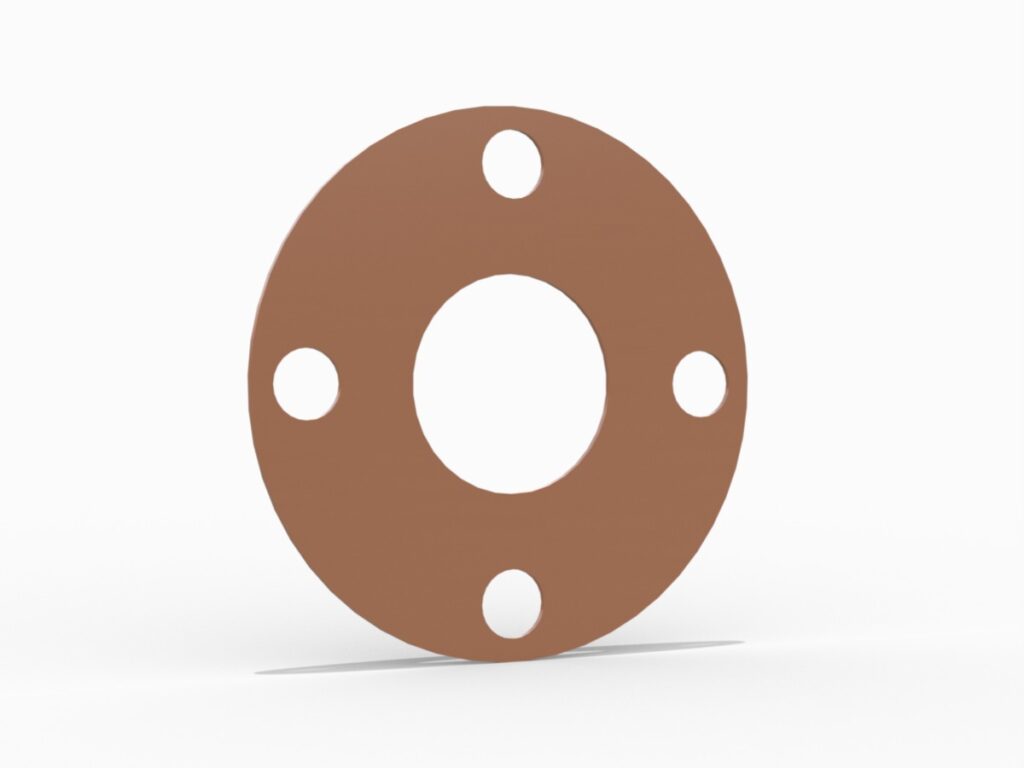

GYLON® Style 3502 OXY Service can be supplied as Full Sheet, Custom Size Cut Sheet, flange gaskets, Ring gaskets, Custom Gaskets, strips, Blocks, washers.

The GYLON® Style 3502 OXY Service is a high performance, silica filled PTFE sheet material designed for use with strong acids, solvents, hydrocarbons, and other aggressive media.

Features and Benefits:

Specially Designed for Oxygen Service Application
Tight seal
Improved performance over conventional PTFE
Reduced product loss and emissions
Reduced creep relaxation
Unique manufacturing process minimizes cold flow problems typical of skived and expanded PTFE sheets
Excellent bolt torque retention
Withstands a wide range of chemicals for extended service life in a wide variety of applications
Branding and color coding reduces misapplication
Will not support flame
Will not support bacterial growth

Media Use:

Strong acids (except hydrofluoric acid)
Solvents
Hydrocarbons
Water
Steam
Chlorine
Cryogenics

Industries Served:

Chemical Processing
Food and Beverage
Mining
Pharmaceutical
Primary Metals
Water and Wastewater
Pulp and Paper
Power Generation
Oil and Gas
Nuclear

MATERIAL PROPERTIES:

Color:	Fawn
Composition:	PTFE with silica
Fluid Services (see chemical resistance guide):	Oxygen service, solvents, hydrocarbons, strong acids (except hydrofluoric), steam, chlorine and cryogenics
Temperature, °F (°C)
Minimum:	-450 (-268)
Maximum:	+500 (+260)
Pressure, Maximum, psig (bar):	1200 (83)
P x T (max.)1, psig x °F (bar x °C):
1/32 and 1/16”:	350,000 (12,000)
1/8”	250,000 (8,600)
Flammability:	Will Not Support Flame
Bacterial Growth:	Will Not Support
Meets Specifications:	FDA (Food and Drug Administration) and USDA (US Department of Agriculture)
