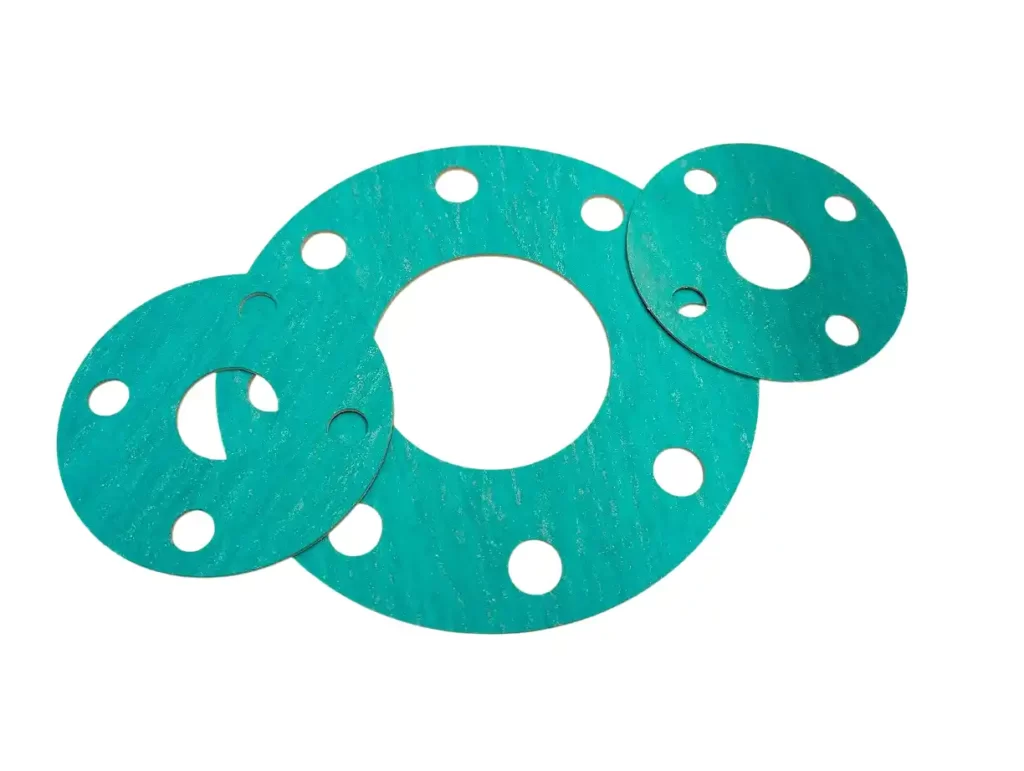

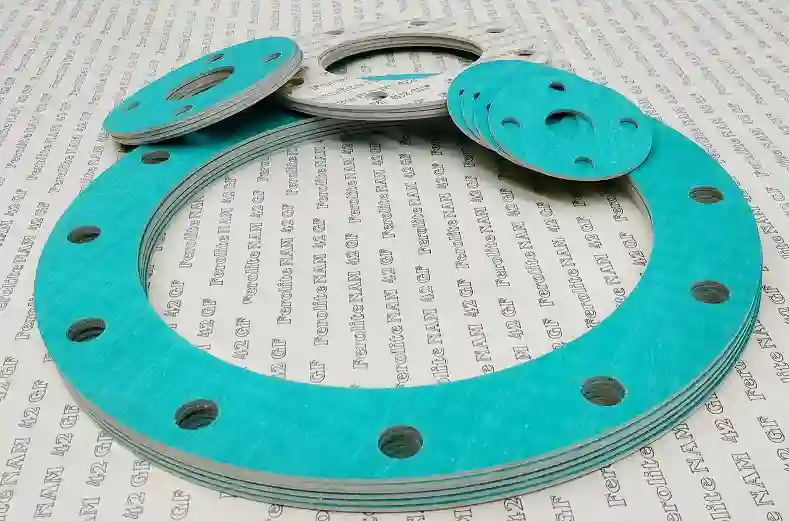

Ferolite NAM 42GF Full Face Fibre Gaskets

Ferolite NAM 42GF Full Face Gaskets are a premium non-asbestos jointing material made from aramid, mineral, and glass fibres reinforced with an NBR (nitrile) binder. This formulation delivers exceptional strength, temperature stability, and chemical resistance, conforming to BS 7531 Grade X standards. NAM 42GF performs reliably under high pressure and elevated temperature, making it ideal for oil, gas, steam, and aggressive chemical service across Australian industrial plants.

Key Benefits

• Non-asbestos composition with aramid, mineral, and glass fibre reinforcement.
• NBR binder ensures superior oil, fuel, and solvent resistance.
• Excellent mechanical strength for high-stress sealing applications.
• Maintains seal integrity at high temperature and pressure.
• BS 7531 Grade X certified, meeting international sealing standards.
• Marine-approved by Lloyd’s Register.

Material & Technical Properties (Per Datasheet)

• Composition: Aramid Fibre, Mineral Fibre, Glass Fibre with NBR Binder
• Continuous Service Temperature: 350 °C
• Peak Temperature: 440 °C
• Steam Service: 250 °C
• Maximum Pressure: 150 kg/cm² (≈ 14.7 MPa / 147 bar)
• Approvals: Lloyd’s Register | DIN EN 13555 Tested

Applications

• Steam, oil, and gas pipelines
• Chemical process and refinery plants
• Heat exchangers, compressors, and high-pressure vessels
• Boilers, turbines, and power generation systems
• Pulp, paper, and general industrial sealing applications

Sizes & Standards

• Thickness Range: 0.5mm, 1mm, 1.5mm, 2mm, 3mm
• Sheet Size: 1500×2000mm
• Flange Standards: ANSI, AS 2129, AS 4087, PN, JIS, Table D/E/F/H

Custom Cutting & Fabrication

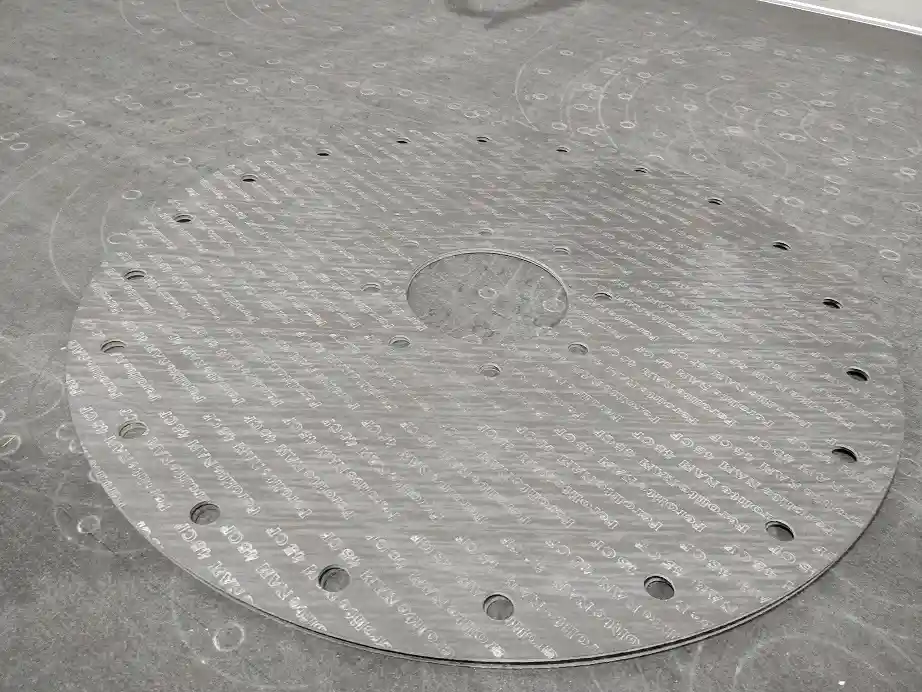

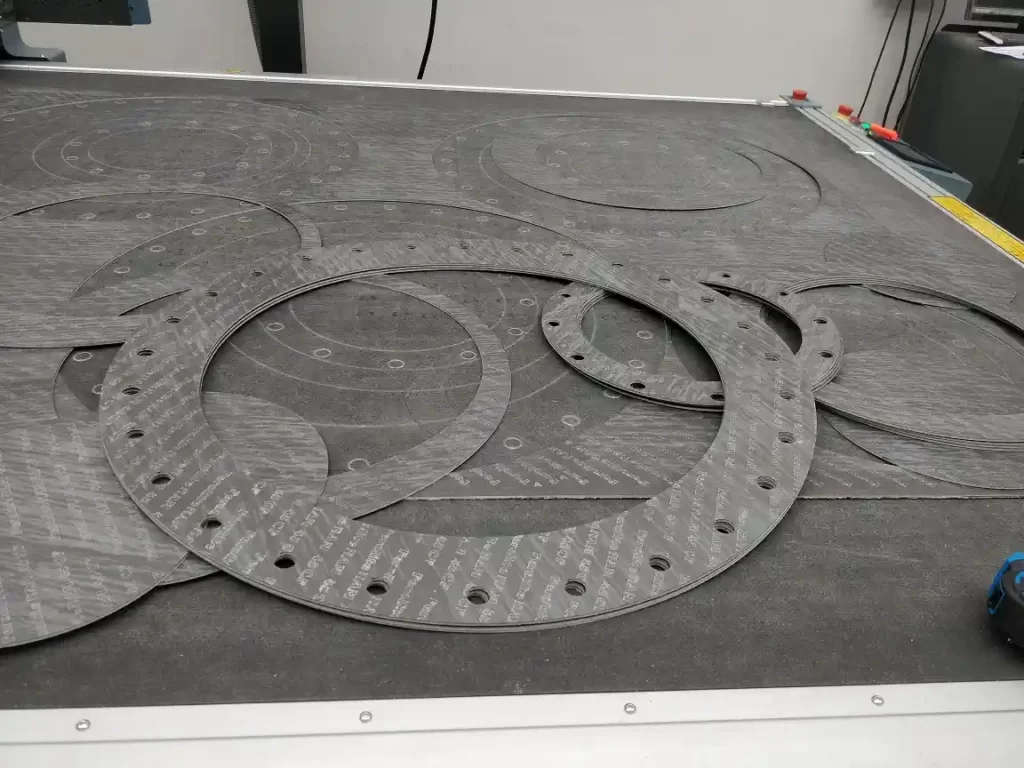

At Industrial Experts, we custom-manufacture Ferolite NAM 42GF Full Face Gaskets to suit any flange size or standard. Our in-house CNC oscillating knife and clicker press cutting systems ensure tight tolerances, clean edges, and consistent sealing. We also offer adhesive-backed, segmented, and large-diameter gaskets for industrial and marine applications.

Ordering & Delivery

• Fast nationwide delivery from Truganina, VIC
• Bulk, trade, and OEM supply available
• Custom cut-to-size service for all flange types
• Express turnaround for shutdowns and urgent projects

FAQ – Ferolite NAM 42GF Full Face Gaskets

Q1: What makes Ferolite NAM 42GF unique?
A: It combines aramid, glass, and mineral fibres for superior mechanical and chemical resistance, conforming to BS 7531 Grade X standards.

Q2: What are the temperature and pressure limits?
A: Continuous service up to 350 °C, 440 °C peak, and 150 kg/cm² pressure.

Q3: Is it suitable for aggressive chemicals and steam?
A: Yes — it’s designed for high-stress environments, resistant to oils, fuels, gases, and chemicals, and safe for steam up to 250 °C.

Q4: Is it asbestos-free?
A: Absolutely — Ferolite NAM 42GF is 100% non-asbestos, compliant with environmental and safety standards.
