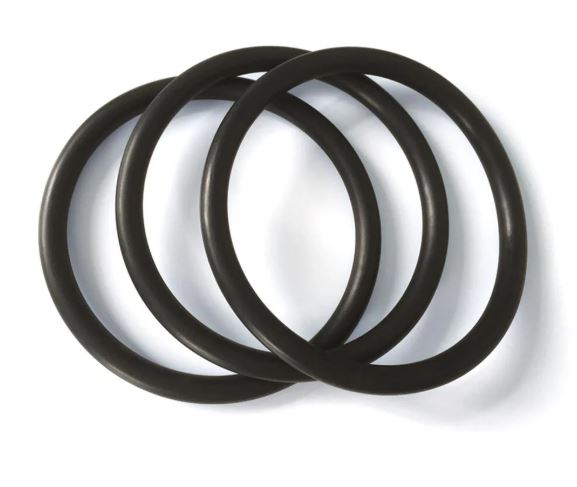

FFKM O‑Ring
Product successfully added to the Quote List
Industrial Experts manufactures and supplies FFKM O-rings across Australia, in standard AS568 and metric sizes as well as custom builds to order.
We’re a Melbourne-based FFKM O-rings manufacturer, delivering Australia-wide with technical support on hand to help you land on the right grade for your job. If you need a high-performance alternative to Kalrez® O-rings FFKM, we can help you find a high-quality equivalent without the premium brand price.
What Is an FFKM O-Ring?
FFKM stands for perfluoroelastomer, a fully fluorinated rubber built to hold a seal in conditions that would wreck an ordinary O-ring. FKM, sold under the Viton name, is only partially fluorinated, leaving weak points that hot acids and solvents can attack over time. FFKM closes those gaps chemically, so it keeps sealing in places where Viton would degrade.
It works in both static and dynamic joints and maintains a low compression set, so it springs back to shape, and the seal stays tight even after long service at high temperatures.
Need a stronger seal? Source high-performing FFKM O-rings from Industrial Experts today.
[FFKM O-Rings Shop & Products Module]
FFKM O-Ring Properties and Performance
FFKM commands a premium price for its durability under extreme conditions. Here’s how it works in critical or high-value equipment:
| Property | FFKM Value | Why It Matters |
| Temperature | −40°C to +327°C (−40°F to +621°F); +350°C spike | Holds a seal past the point where Viton fails |
| Chemical resistance | 1,600 to 1,800 chemicals | Covers acids, solvents, ammonia, and plasma |
| Compression set | Low | Keeps sealing force steady over long service |
| Outgassing | Low | Fits vacuum and clean-room lines |
| Hardness | 75 Shore A standard | Balances seal and extrusion resistance |
| Cost tier | Premium | Priced for critical service, not general use |
FFKM shows up so often in semiconductor and vacuum work, where even a small amount of off-gassing from the seal material can contaminate sensitive equipment or interfere with production. That’s why Industrial Experts manufacture high-quality FFKM O-rings designed to meet the demands of these environments.
For less demanding jobs, we also stock everyday options like Nitrile O-Rings and Silicone O-Rings.
FFKM vs Viton (FKM) and Aflas (FEPM)
FFKM is designed for conditions where Viton or Aflas may no longer provide enough heat or chemical resistance.
Viton (FKM) is a solid all-rounder for oils, fuels and heat. Aflas (FEPM) O-rings step up for steam, sour gas and high-pH chemicals. FFKM sits at the top end, offering the broadest chemical resistance and the highest temperature capability for critical applications.
| Material | Max Temperature (°C / °F) | Chemical Range | Relative Cost | Choose When |
| FFKM | +327°C (+621°F) | Near-universal | Highest | Aggressive chemicals at extreme heat, critical service |
| Viton (FKM) | +200°C (+392°F) | Oils, fuels, many chemicals | Mid | Hot oil and fuel jobs |
| Aflas (FEPM) | +230°C (+446°F) | Steam, sour gas, high pH | Mid to high | Oilfield and high-pH media |
Not sure which material is right for your application? Industrial Experts can help you compare the options and choose a seal that suits the job.
Call us for expert support today.
Kalrez, Chemraz, and FFKM Grades Explained
All three are brand names within the FFKM family. The main thing to compare is the specific grade and compound, as performance can vary by application.
When choosing FFKM O-rings, consider:
- Chemical compatibility: What fluids or gases the seal will contact
- Operating conditions: Including heat, pressure, and vacuum
- Application requirements: Such as semiconductor, pharmaceutical, or oil and gas use
Industrial Experts supplies Kalrez O-rings FFKM equivalents designed to deliver comparable performance with trade pricing.
Get the Right FFKM O-Rings from Industrial Experts
Industrial Experts stocks FFKM O-rings in standard AS568 and ISO 3601 metric sizes. Our sizing mainly comes down to these measurements:
- Inside diameter (ID)
- Outside diameter (OD)
- Cross-section (CS)
Common cross-sections include 1.78 mm, 2.62 mm and 3.53 mm, covering many standard applications.
Need something outside the usual range? We can also help with custom sizes and matching custom-made gasket cutting to your specifications.
Everything is supplied from Melbourne, with Australia-wide support to help you choose the right size and grade before ordering.
FFKM O-Rings For Demanding Applications
FFKM rings are perfect for conditions with extreme heat, aggressive chemicals, or both. Here’s where we see them used most in Australia:
- Semiconductor fabrication: FFKM seal vacuum and plasma lines, where outgassing would ruin the wafer.
- Pharmaceutical processing: FFKM O-rings seal sterilisation cycles and clean media that attack lesser rubbers.
- Oil and gas: FFKM seal wellhead and process equipment against sour gas and high heat.
- Aerospace fuel and hydraulic systems: FFKM rings hold a seal across extreme temperature swings.
- Chemical processing: FFKM o-rings seal reactors and valves carrying strong acids.
See our guide on O-Ring applications for more details on matching ring type to the job, or reach out to our expert team for more information.
Why Source FFKM O-Rings from Industrial Experts
- Australian FFKM specialist: We manufacture and supply FFKM O-rings locally.
- Technical support: Our team helps you select the right grade for your specific use.
- Standard and custom: Off-the-shelf AS568 and metric sizes, plus custom cuts available.
- Melbourne dispatch: Sent Australia-wide for shorter lead times than importing.
- Trade pricing: Available on high-volume orders of premium FFKM material.
- Family-owned: We’re a full-service gasket distributor, supplying FFKM O-rings alongside a broader range of industrial gaskets and sealing products.
Get in touch with our team for grade advice or a quote on your next order.
FFKM O-Ring FAQs
Are Kalrez and FFKM O-rings the same?
Not exactly. FFKM is the material family, while Kalrez® is DuPont’s registered brand of FFKM compounds. Kalrez O-rings are simply O-rings moulded from those Kalrez FFKM compounds.
Other FFKM O-rings factories offer their own materials under different brand names, such as Chemraz and PERFREZ. Performance still depends on the specific compound and grade, not just the brand.
Industrial Experts supply Kalrez-equivalent FFKM O-rings for demanding applications, giving you a high-performance alternative without the high brand price.
What is the temperature range of FFKM O-rings?
Standard FFKM O-rings operate from around −40°C to +327°C (−40°F to +621°F), with some compounds capable of handling short-term temperature spikes up to +350°C.
The exact figure depends on the specific grade, so it’s worth checking the compound datasheet against your actual operating conditions before you place an order. Or work with our team at Industrial Experts for a more informed choice.
Why are FFKM O-Rings so expensive?
FFKM costs more because of what goes into it and what it can withstand. The raw perfluoroelastomer is more expensive to produce than nitrile, Viton, or Aflas, and it resists between 1,600 and 1,800 chemicals while maintaining its seal at temperatures that would destroy cheaper rubbers.
That premium price reflects high performance, and it’s usually only worth paying where a standard ring can’t do the job.
