Rubber vs Fibre vs PTFE vs Graphite Gaskets: Pros, Cons & Use Cases

Choosing the right gasket material can feel frustrating – you want reliable sealing, long service life, and the best value, but the options and technical specs quickly become overwhelming. Pick the wrong material and you risk leaks, expensive downtime, or even safety issues. This guide breaks down rubber vs fibre vs PTFE vs graphite gaskets in plain English so by the end you’ll know which material suits your application, whether you’re a maintenance technician, plant operator, or DIY-minded buyer.

Why Does Choosing the Right Gasket Material Matter?

A gasket’s job is simple: stop leaks. But the environment it works in isn’t. When you choose a gasket you need to consider:

• Pressure and temperature resistance – will the gasket hold up under system pressure and heat?
• Chemical compatibility – will the fluid attack the gasket?
• Service life and maintenance – how often will it need replacing?

Picking the wrong material leads to leaks, unplanned shutdowns, and increased costs. In this guide we compare four common options: rubber, compressed fibre, PTFE (Teflon), and flexible graphite – framed as rubber vs fibre vs PTFE vs graphite gaskets so you can match performance to your needs.

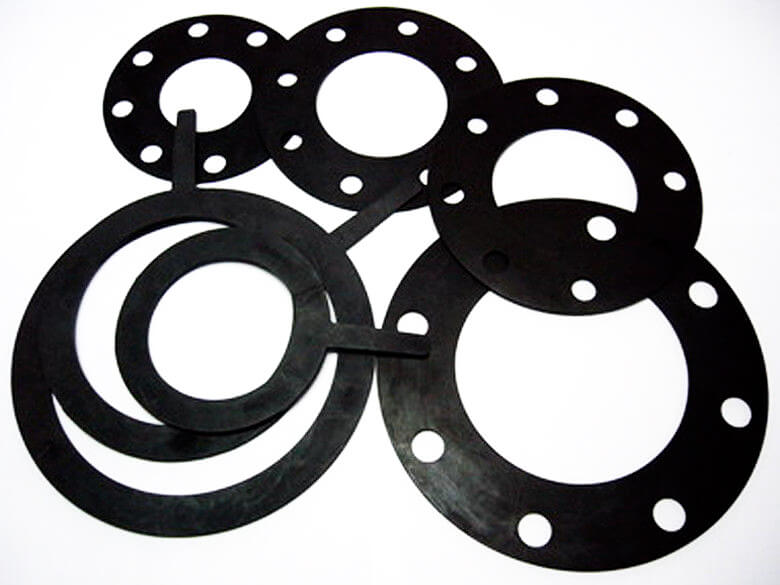

What Are Rubber Gaskets Best Used For?

Key Characteristics

Rubber gaskets (EPDM, neoprene, nitrile, silicone) are flexible and resilient. They seal well at low-to-medium pressures and absorb vibration.

Pros

• Cost-effective
• Easy to cut and install
• Excellent sealing at low temperatures
• Great vibration and noise dampening

Cons

• Not suitable for very high temperatures
• Some rubbers degrade with aggressive chemicals or oils (choose material carefully — see EPDM vs Neoprene Gaskets)
• Can compress over time under sustained load

Common Applications

• Automotive hoses and engine parts
• Plumbing and household fixtures
• Low-pressure pipelines and HVAC systems

If you’re comparing rubber vs PTFE, rubber wins on flexibility and cost for everyday sealing tasks, but loses out on chemical resistance and high-temperature performance.

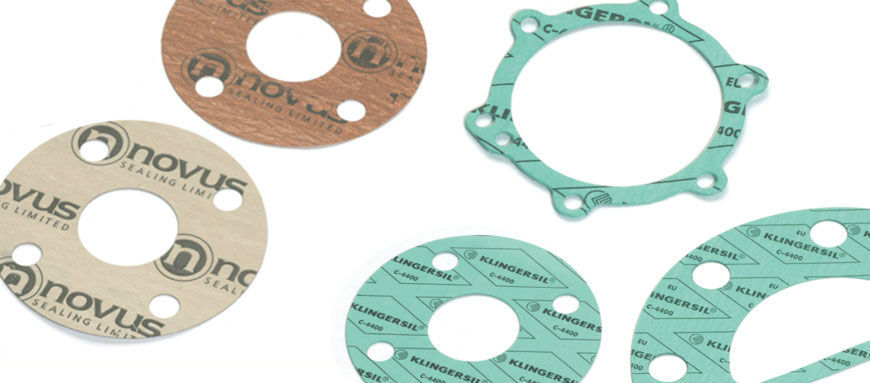

Where Do Fibre Gaskets Excel?

Material Overview

Fibre gaskets – often compressed non-asbestos fibre (CNAF) – are sheets of reinforced fibres and binders. They’re designed for oil, water and general industrial use.

Pros

• Good chemical and temperature resistance for moderate conditions
• Affordable and reliable for flange sealing
• Works well on slightly irregular flange faces

Cons

• Less flexible than rubber – harder to conform to complex shapes
• Can degrade at very high temperatures or with certain chemicals

Typical Use Cases

• Flange gaskets for water, oil and low-to-medium pressure steam
• General-purpose industrial sealing where cost and reliability matter
• Often used where paper gaskets might be considered but higher performance is needed

Fibre is a solid middle-ground option when rubber won’t handle temperature/pressure and PTFE isn’t necessary.

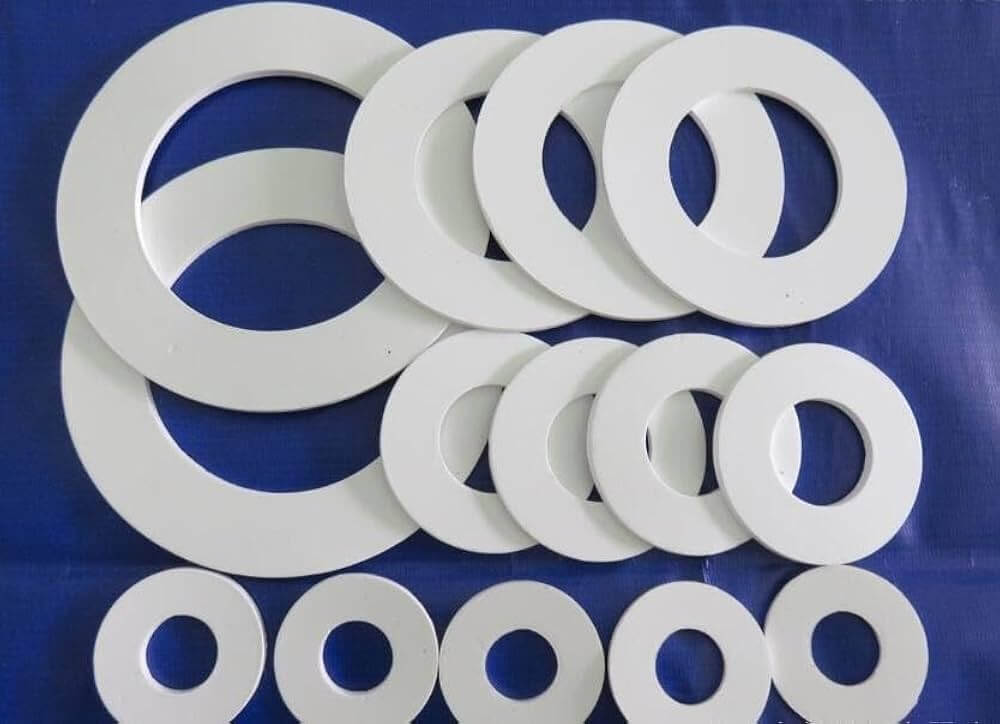

When Should You Choose PTFE Gaskets?

Properties & Performance

PTFE (polytetrafluoroethylene) is chemically inert, non-stick, and tolerates a wide temperature range. It’s basically the go-to for corrosive services.

Pros

• Outstanding chemical resistance (covers most acids, alkalis, solvents)
• Wide temperature range and excellent long-term stability
• Non-contaminating – ideal for food, pharma and lab use

Cons

• Less elastic than rubber – often needs higher bolt torque or a metal jacket to help seal
• Higher initial cost
• Can “cold flow” (deform slowly) under very high loads unless supported

Common Applications

• Chemical processing lines
• Food and pharmaceutical equipment (hygiene-critical)
• Highly corrosive environments and corrosive chemical pipelines

When weighing rubber vs PTFE, PTFE is the clear choice for chemical resistance and hygiene, while rubber is better for flexibility, shock absorption and lower cost.

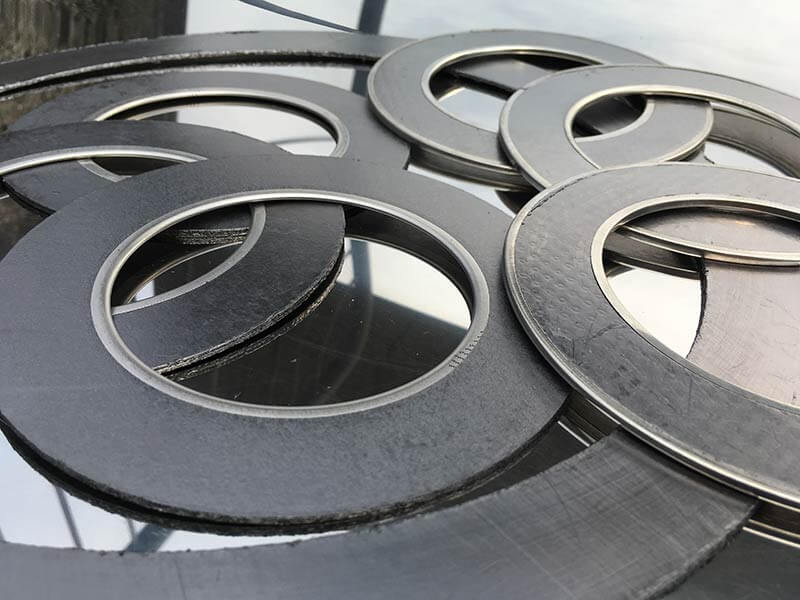

Why Are Graphite Gaskets Preferred for High-Performance Systems?

Characteristics

Graphite gaskets are made from flexible graphite and often reinforced with a metal core. They’re made for heat, pressure and tough chemical exposure.

Pros

• Excellent high-temperature and thermal cycling performance
• Chemically tolerant and performs under high pressure
• Long service life in demanding systems

Cons

• More expensive than fibre or rubber
• Requires careful handling (brittle edges) and correct flange finish
• Not ideal where particulate contamination must be avoided (unless encapsulated)

Best Use Cases

• High-temperature steam systems (see gasket selection for high-temperature steam applications)
• Power generation, petrochemical and refinery services
• Exhaust systems and other extreme environments

Graphite is the specialist choice when reliability under extreme conditions matters more than upfront cost.

Which Gasket Material Is Right for Your Application?

Below is a quick comparison table to help simplify rubber vs fibre vs PTFE vs graphite gaskets:

Feature / Material	Rubber	Fibre (CNAF)	PTFE	Graphite
Temperature tolerance	Low–Medium	Medium	Low–High	High
Chemical resistance	Variable (depends on type)	Good (moderate)	Excellent	Excellent
Flexibility /Recovery	Excellent	Moderate	Low	Moderate
Best for	Vibration, low-pressure seals	Flange sealing, oil/water	Corrosive, food/pharma	High-temp steam, power
Cost	Low	Low–Medium	Medium–High	High
Customisable / CNC-cu	Yes	Yes	Yes	Yes (handled carefully)

Advice: Base your choice on the working temperature, pressure, and the chemical nature of the medium. If in doubt, consult specialists, for example, read about choosing the right rubber gasket material or ask experts about EPDM vs Neoprene Gaskets for oil and weather resistance.

Pick the Material That Actually Works

Here are practical, everyday examples to help you match material to the job – short, realistic scenarios showing why one gasket type is the right choice.

Rubber – flexible sealing and weather resistance

Scenario: A café replaces seals on espresso machines and outdoor refrigeration doors.

Why rubber works: EPDM or neoprene gaskets compress easily to seal uneven surfaces, resist weather and steam, and are simple to replace, making them ideal for food-service equipment and outdoor doors where flexibility and cost matter.

Fibre (CNAF) – reliable flange sealing for general services

Scenario: A local factory services a low-pressure oil transfer line and needs flange gaskets that won’t break the budget.

Why fibre works: Compressed fibre gaskets give good oil and water resistance at moderate temperatures and pressures, are affordable, and conform to slightly rough flange faces – perfect for routine plant piping and maintenance crews.

PTFE – corrosion-proof sealing for chemicals and hygiene

Scenario: A dairy plant fits new valves on a pasteuriser and needs seals that won’t contaminate product or corrode.

Why PTFE works: PTFE is chemically inert and food-safe, so it resists acids, alkalis and cleaning chemicals while meeting hygiene rules; the go-to choice for chemical lines, food, and pharmaceutical equipment.

Graphite – heavy-duty service and high-temperature steam

Scenario: A power plant replaces gaskets on a high-temperature steam outlet where thermal cycling and pressure spikes are common.

Why graphite works: Flexible graphite handles extreme heat, fluctuating temperatures and high pressures with long service life, ideal for steam mains, petrochemical reactors and other high-performance systems.

Mixed/Practical example – combining strengths

Scenario: A refinery needs a flange gasket that must resist heat and corrosive liquid; installers also want easy centring.

Why a hybrid or supported gasket helps: A graphite or PTFE sealing element with a metallic support ring (or PTFE jacketed style) can deliver chemical resistance and pressure handling, while maintaining easier installation and alignment.

How Industrial Experts Can Help You Make the Right Choice

Industrial Experts are experienced suppliers of industrial gaskets across rubber, fibre, PTFE and graphite. We offer:

• Custom gaskets and tailored solutions to match your flange, pressure and media requirements.
• Precision fabrication so gasket dimensions and tolerances are spot-on.
• Technical support for gasket selection for high-temperature steam applications and chemical services.
• A product range that includes rubber sheets, fibre materials, PTFE seals, graphite rings and related parts, plus options like paper gaskets where appropriate.

Understanding rubber vs fibre vs PTFE vs graphite gaskets doesn’t have to be complicated. Focus on the operating temperature, chemical exposure and sealing pressure, and let material properties guide you. When you pair the right material with quality manufacturing and proper installation, you reduce leaks, downtime and long-term cost. Contact Industrial Experts to get tailored advice and reliable gaskets that keep your systems running safe and leak-free.
